This is for Handrail legs/posts/banisters that are 1" thick. USA Handmade by our shop
We are the Original maker & INVENTOR of these Railing Repair feet and are in a ****PAT PENDING***. Custom fabricated by Anvil Welding & Fabrication in Pennsylvania with steel sourced in America. Our certified welders and blacksmiths take Great care with our products. Right here is a great USA made product! These feet are perfect for those looking to improve their home's safety and functionality. With these repair feet, you can rest assured that your handrail will remain sturdy and safe for years to come!
Yes, we know there is a copycat, and we will take full advantage of our Provisional Royalty Rights soon! ;)
Don't be fooled by cheaper imitations! We appreciate your understanding and THANK YOU for supporting my small business!!
Plus Shipping is FREE!

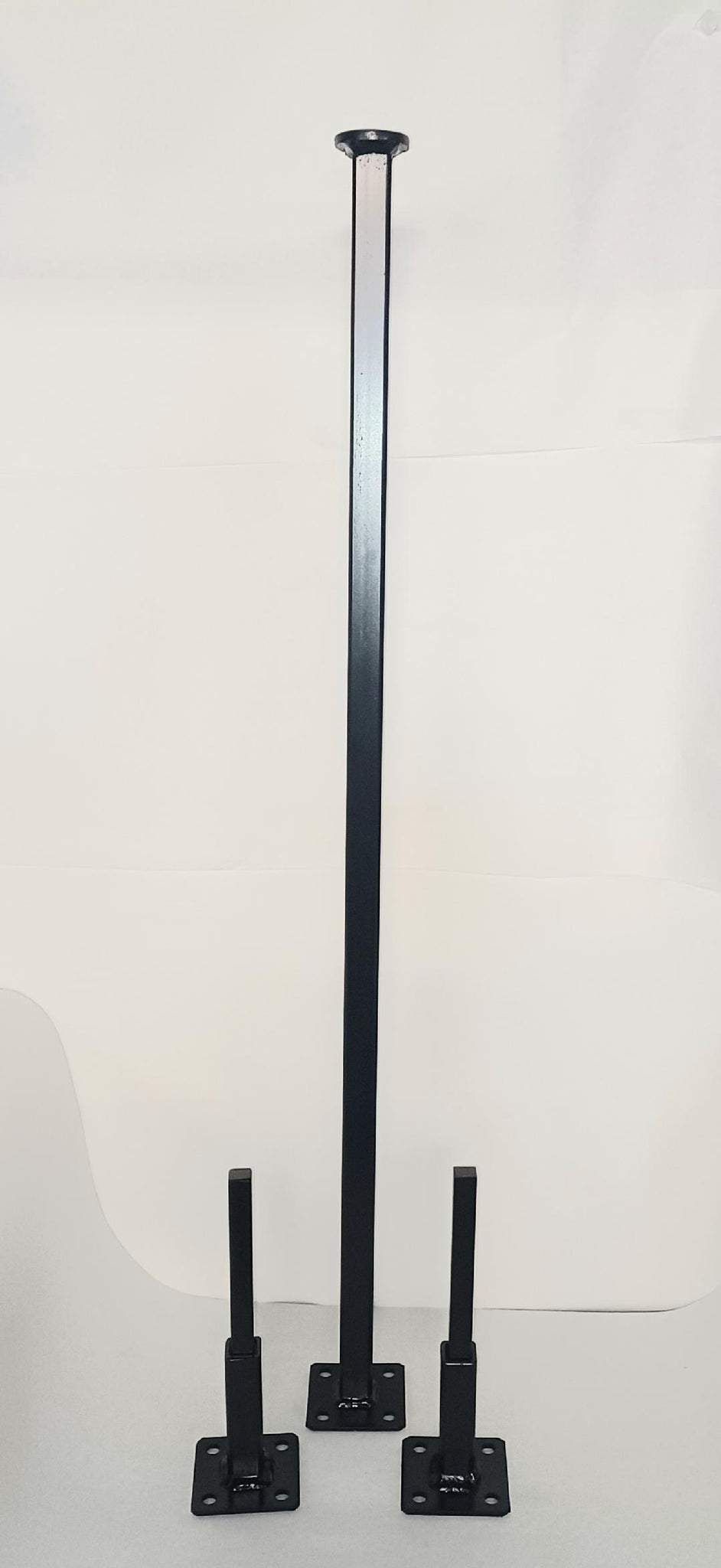

Price is for: 2 repair feet 4"/ bolts/ 3 base covers and 1- 1" x 1" square tube post 36" long.
Works on your 1" square legs/posts/banisters Hollow only.

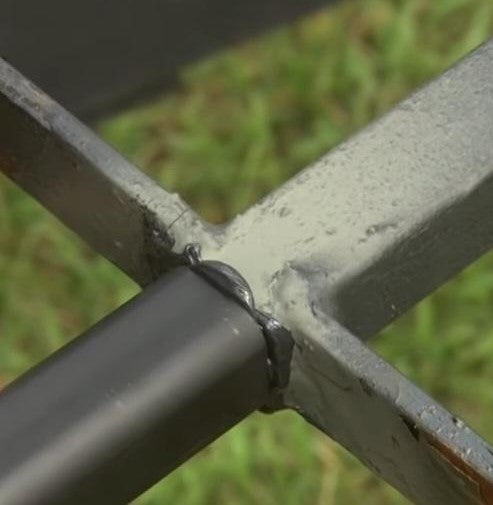

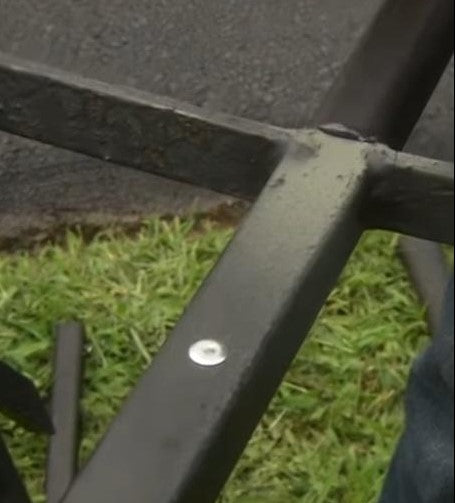

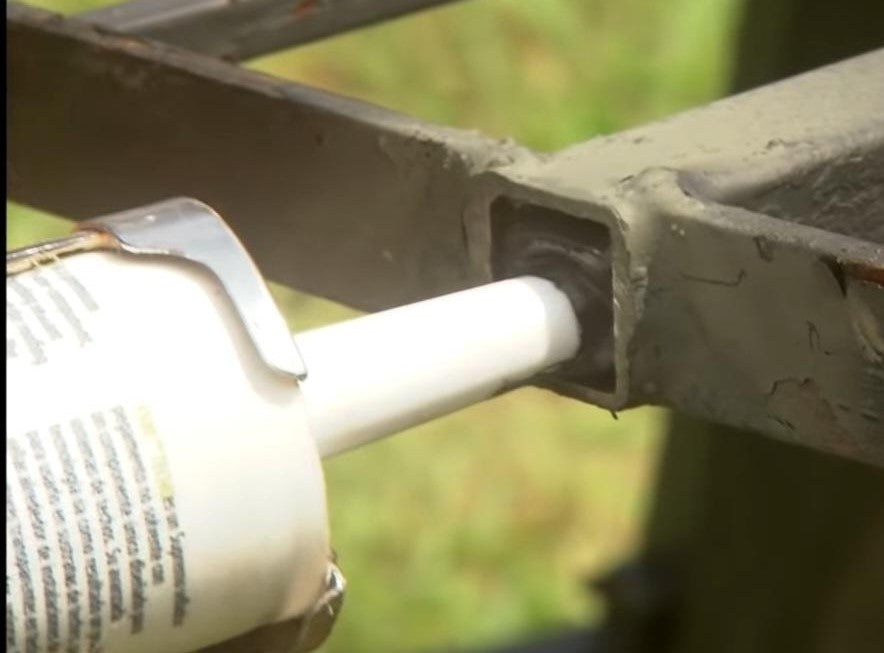

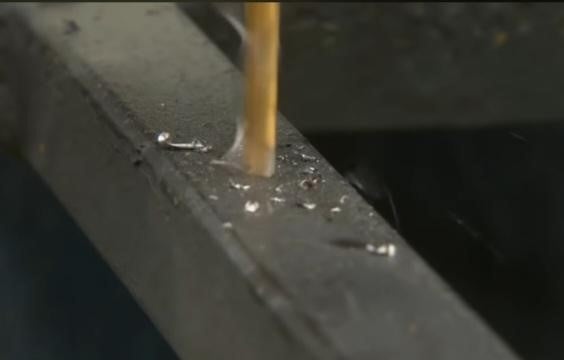

Cut off the bad part of railing leg, fill existing leg with a strong bonding agent, slide the square bar all the way up into leg. Drill 1 hole through Existing Handrail leg into the square bar inside. Use 1 pop rivet to secure repair foot, then bolt the plate down and Done!
What's included: 2 Rail repair feet and anchor bolts for all. 1" square post 36" long capped on top and has a 3" x 3" plate welded to bottom. Plate has 4 holes 3/8". You will need to drill a 5/16" hole. 3 Black base covers for a finished look!
Used in concrete, stone & brick.
One 36" Long 1" square tube post capped on top and welded to a 3 x 3 plate.
Base plate: 3 " with (4) 3/8" holes for bolting down and covering up any existing hole.

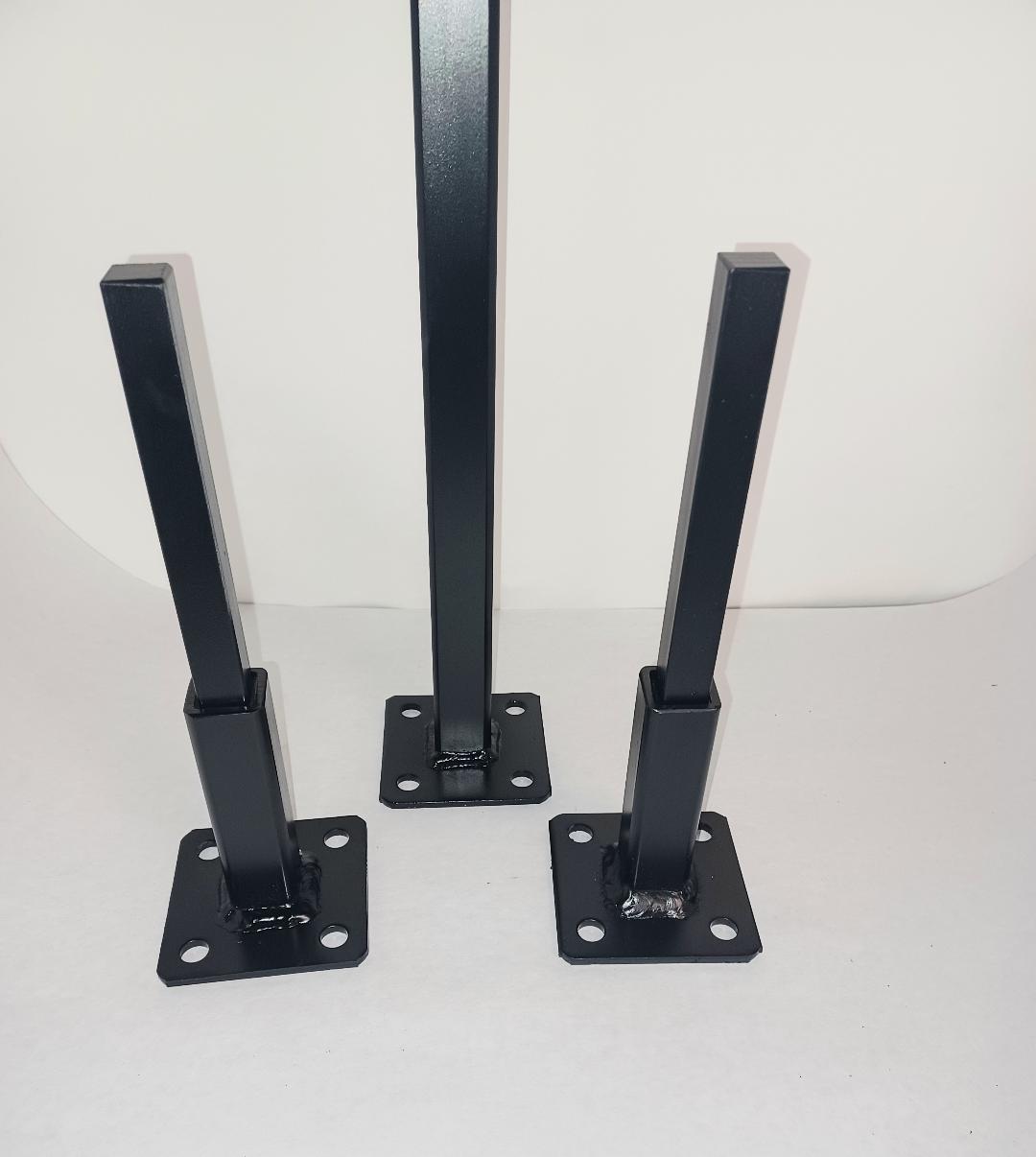

Square Tube repair feet: 4" High welded to base plate. square bar sticks out 4+ inches is welded in place and does NOT come out. Strong and sturdy!

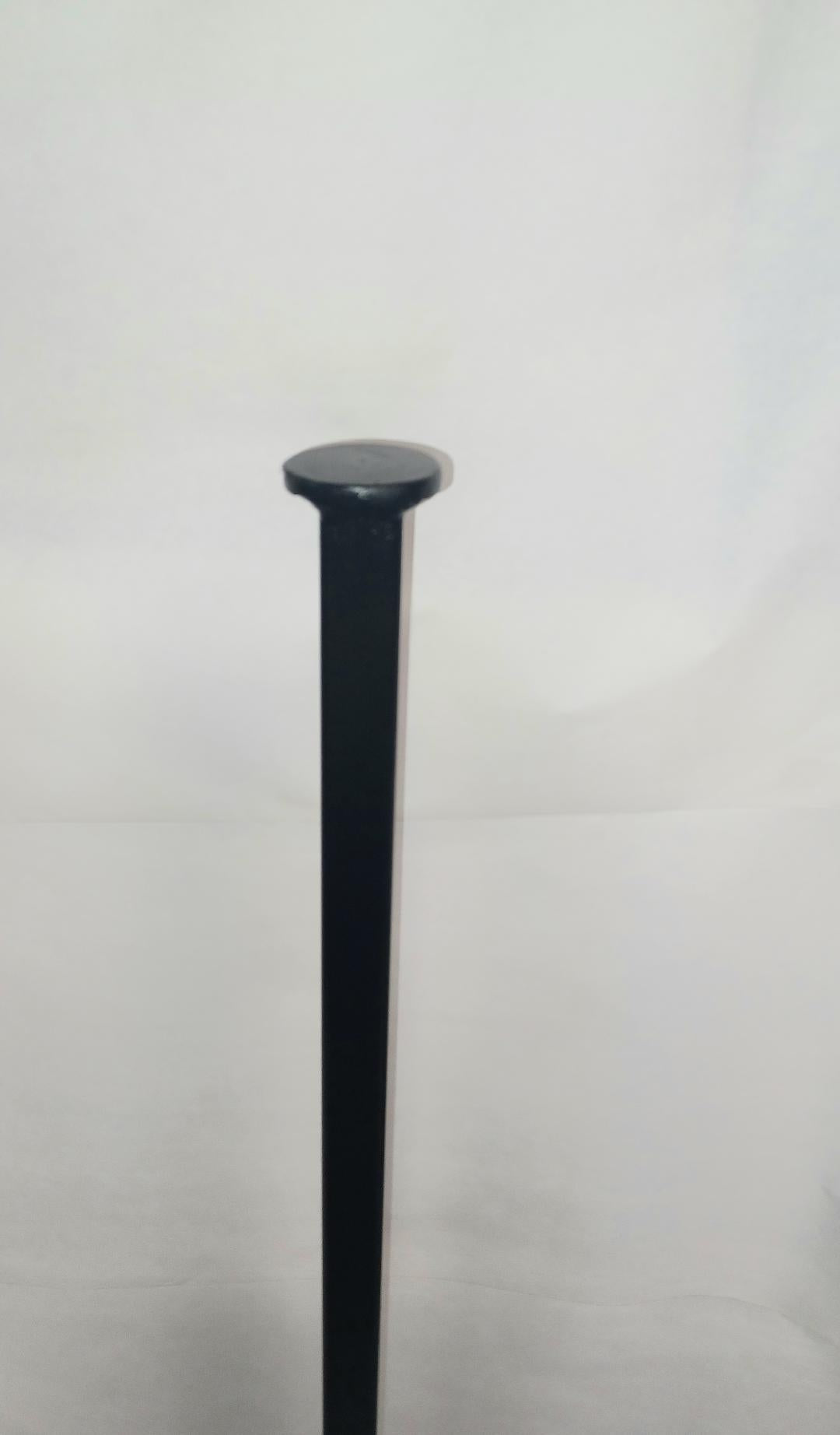

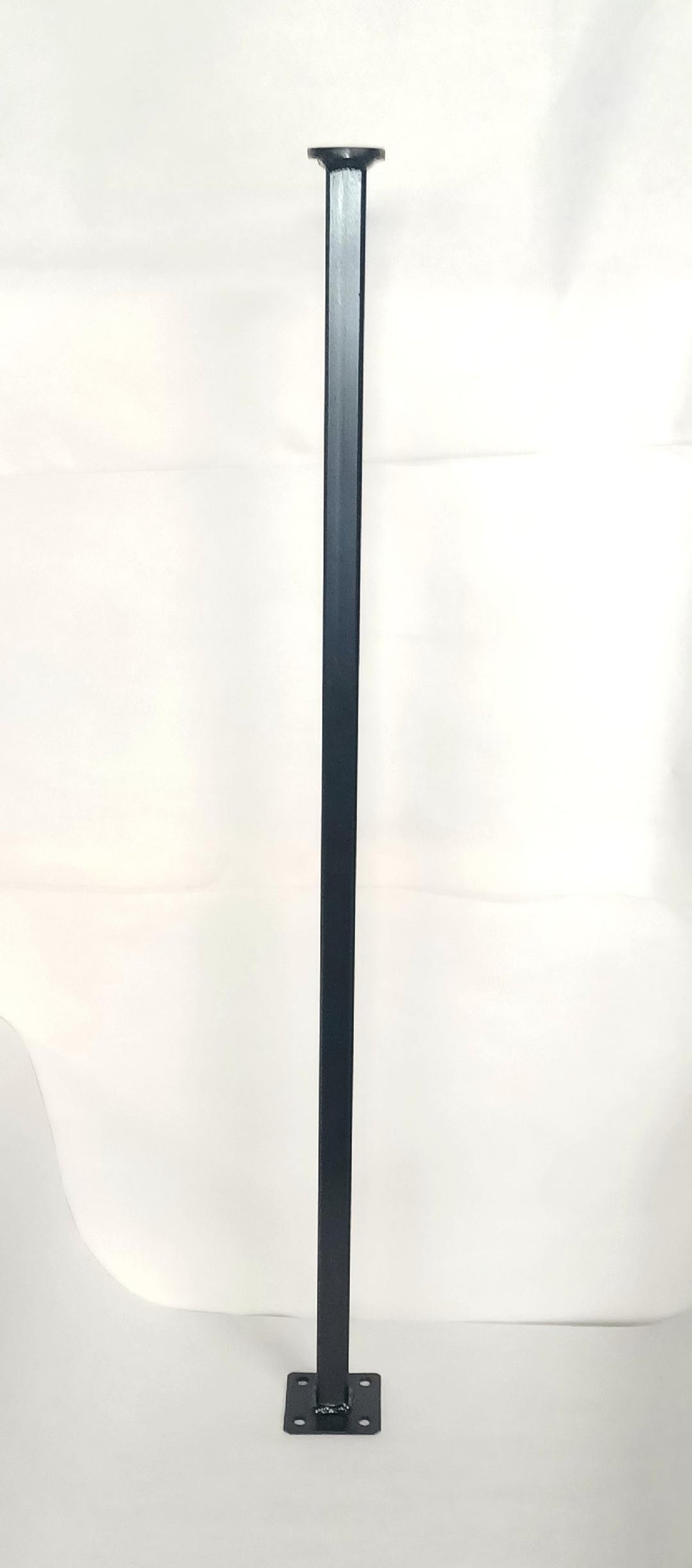

Square post: 1" x 1" x 1/8" tube x 36" long- top is capped off with round disk and bottom has a 3" x 3" plate welded to it with 4- 3/8" holes.
Post needs to be Welded on unless you have a kit railing with tabs on the ends of the top rail and lower channel bar to connect your rails to this New leg.
Then just match up your tabs to the new leg and drill your holes.
Insert screws/self-tapping screws to connect and support your railings top and bottom pieces.
A 1" Post/Leg/Banister matches up to the new square tube 4" repair feet.
ALL Finishes are Primed and painted Black. We offer these in primer only as well.
All sealed up and Ready for your paint color!
We are a custom metal shop please feel free to email or call if you need a different size or can't find what you are looking for. CUSTOM ORDERS: Message us!
